PEWS(Plastic Electromagnetic Welding System)

  • 고주파 (Radio Frequency)를 이용한 Plastic Welding System
  • Plastic(PP,HDPE,ABS,PC,Nylon) 부품설계 및 효율적인 조립에 필요한 전체 Solution 제공
  • Turnkey Solutions : Design - Equipment - Material

특허 등록

  • 플라스틱 제품의 접합방법
  • 등록번호 : 제 10-0804511호

특징

  • 다양한 Application 제품설계
  • Welding부에 대한 고 신뢰성 확보
  • 강도, 접착력, 내구성, 품질 향상 확보
  • 고압 및 기밀 유지 향상
  • 구조적으로 불가능한 Welding & 이종재료간의 Welding

Applications

  • Automobile : 자동차 내 ,외장재
  • Appliance : 다양한 가전제품
  • Industrial : 산업용 탱크, 팔레트, 드럼
  • Medical : 신장 투석 필터, 동맥필터, 혈액 공급기

Electro Magnetic Welding Process

  • Formulated Resin : PP, HDPE, ABS, PC, Nylon
  • 고주파 (Radio Frequency)를 이용한 Plastic Welding

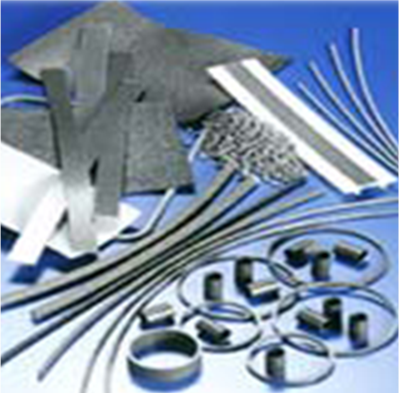

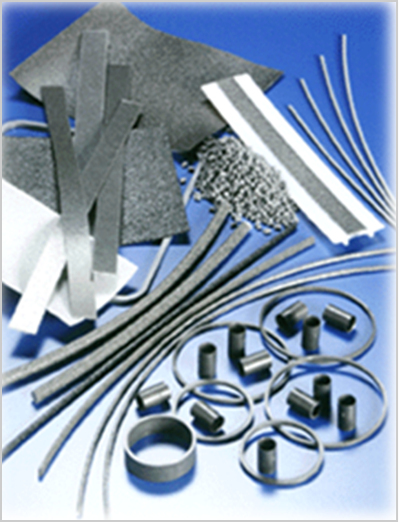

Formulated Resin

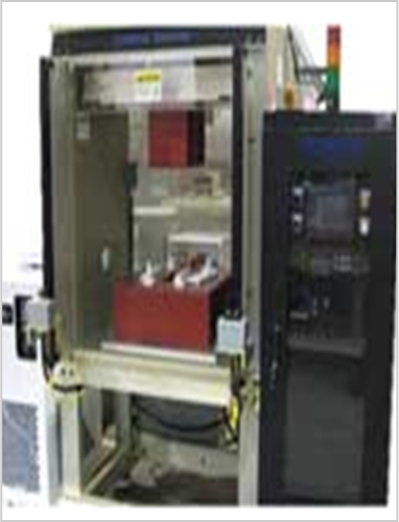

Welding System

Reliable Weld

Electro Magnetic Welding Concept

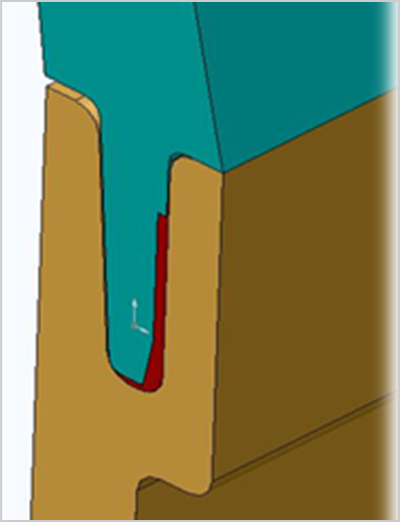

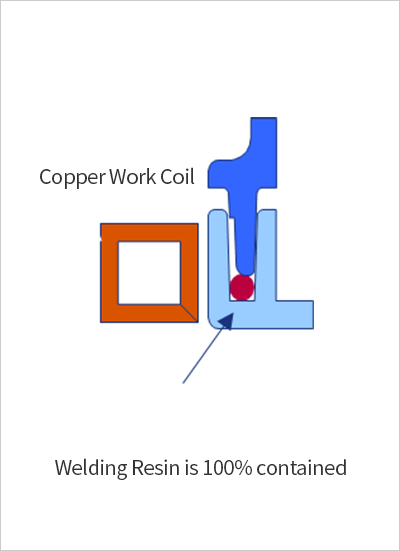

Before Joining

Welding resin is deposited in the joint. The mating parts are brought together and placed within a fixture containing a work coil.

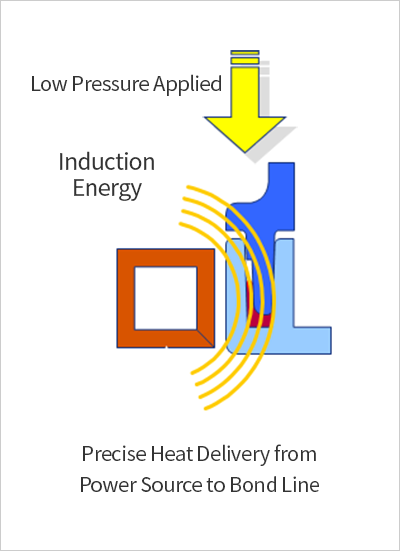

During Joining

The activated coil heats the Welding resin, causing the adjoining surfaces to melt.

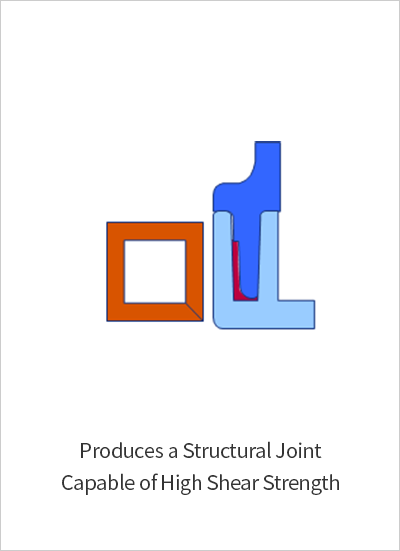

After Joining

The Welding resin has filled the gap. The process has fused the mating parts, resulting in polymer to polymer permanent bond.
